The toughest prefinished edge insulation for your foundation.
The toughest prefinished edge insulation for your foundation.

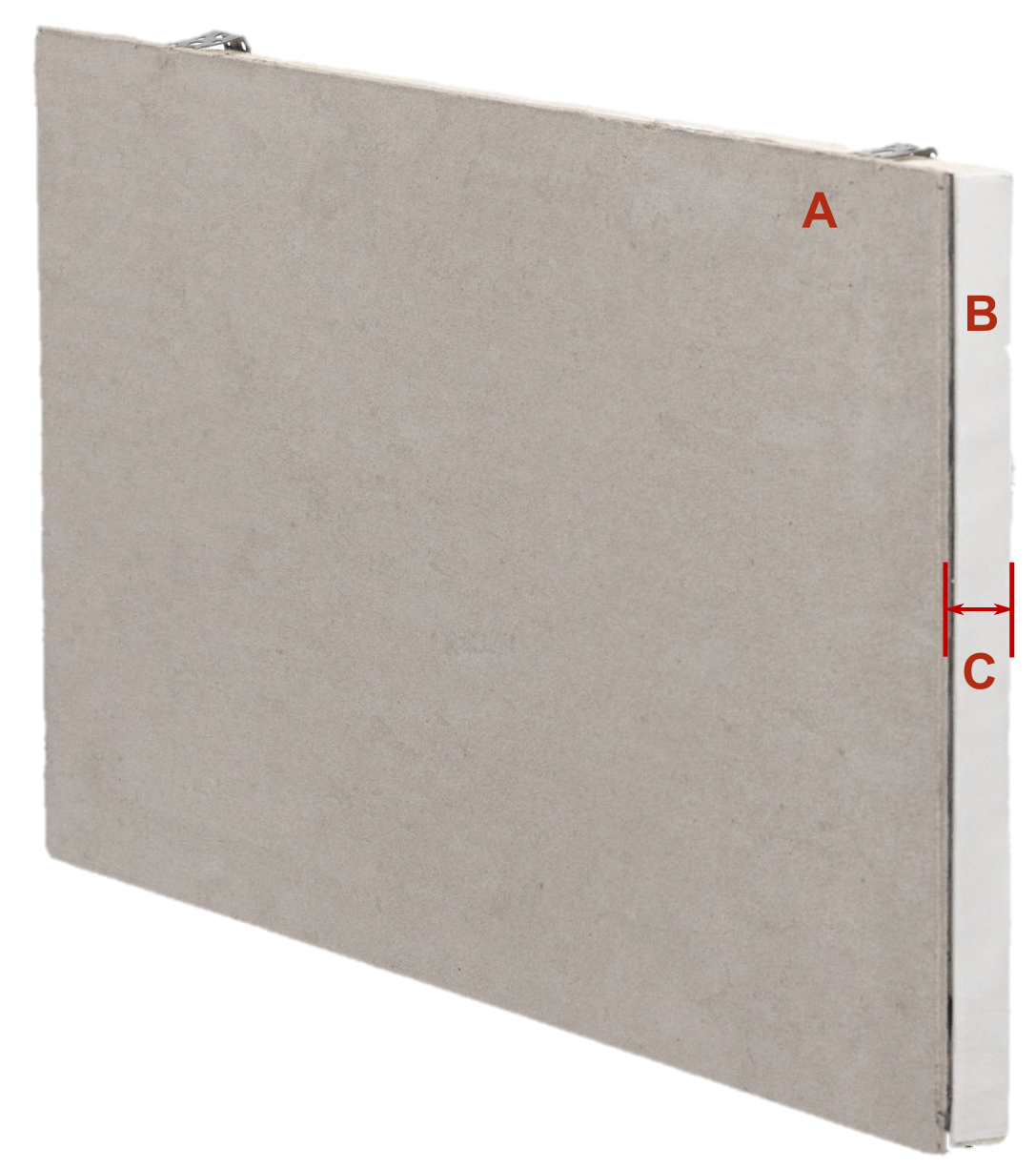

Fibrocement outer shell. Your EdgeBoard™ does not fear your lawn trimmer succeeding where other insulation boards fail. Note: Two coats of acrylic paint are recommended to preserve product performance.
Pressure sensitive adhesive tape. Aesthetics matter. All joints are sealed to prevent the cement slurry from reaching and staining the outer face of your EdgeBoard™.
Reduced thickness. Compatible with standard 90 mm timber framing.
IMPORTANT: For 90 mm bottom plates anchorage, install Hilti HIT-HY170 with anchor rod type: HIT-V-F-8.8 M10x190 at 65 mm from the edge of the foundation (i.e. 40 mm from the inside face of the EdgeBoard™). Anchors shall be embedded for at least 90 mm into solid concrete.

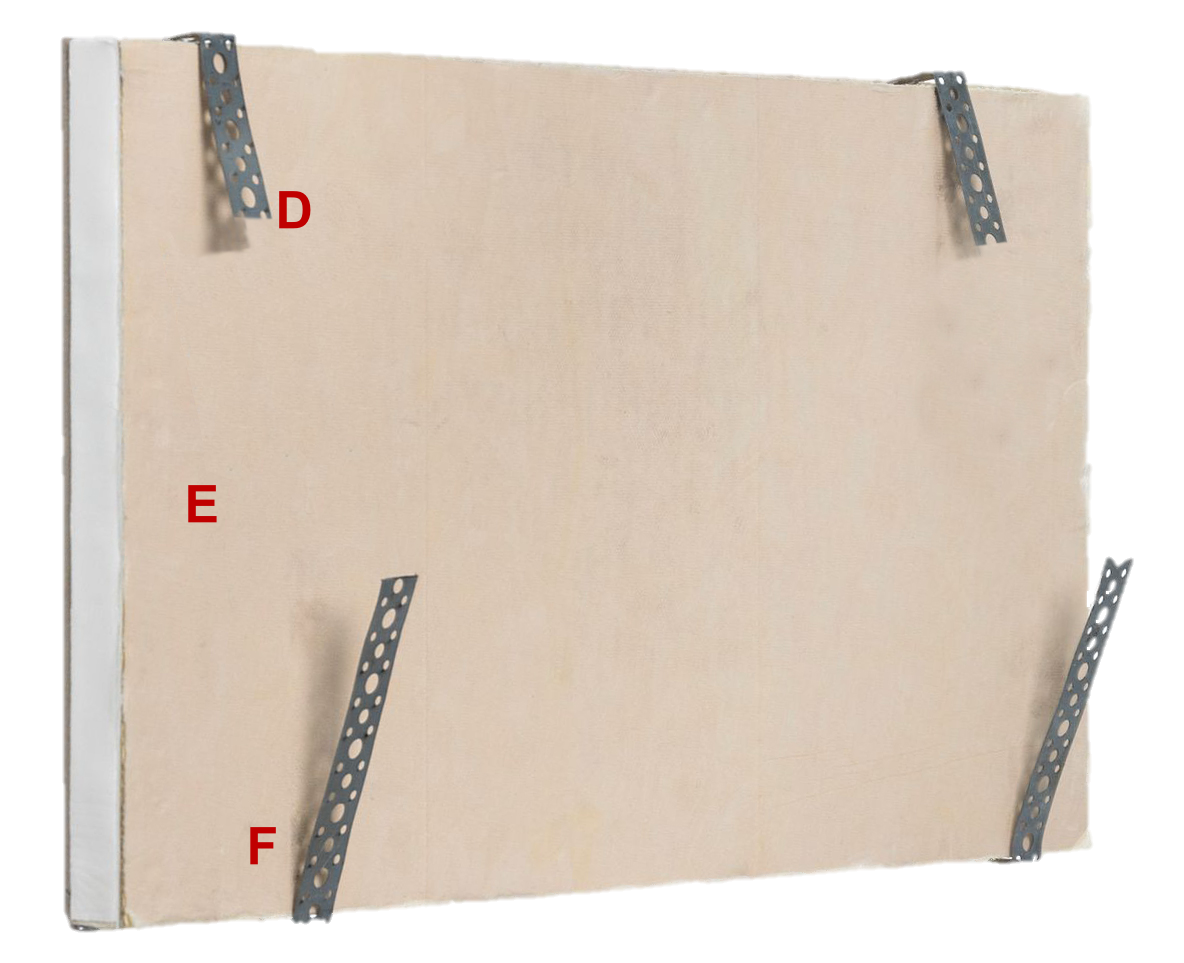

Upper foldable clips. A series of 304 stainless-steel clips are provided to secure your EdgeBoard™ onto your foundation.
Closed cell phenolic foam core. Thanks to first-class insulation materials your EdgeBoard™ delivers the highest thermal insulation in a reduced thickness.
Lower foldable clips. A series of 304 stainless-steel clips are provided to secure your EdgeBoard™ onto your foundation.
Fibrocement outer shell. Your EdgeBoard™ does not fear your lawn trimmer succeeding where other insulation boards fail. Note: Two coats of acrylic paint are recommended to preserve product performance.
Pressure sensitive adhesive tape. Aesthetics matter. All joints are sealed to prevent the cement slurry from reaching and staining the outer face of your EdgeBoard™.
Reduced thickness. Compatible with standard 90 mm timber framing.
IMPORTANT: For 90 mm bottom plates anchorage, install Hilti HIT-HY170 with anchor rod type: HIT-V-F-8.8 M10x190 at 65 mm from the edge of the foundation (i.e. 40 mm from the inside face of the EdgeBoard™). Anchors shall be embedded for at least 90 mm into solid concrete.
Upper foldable clips. A series of 304 stainless-steel clips are provided to secure your EdgeBoard™ onto your foundation.
Closed cell phenolic foam core. Thanks to first-class insulation materials your EdgeBoard™ delivers the highest thermal insulation in a reduced thickness.
Lower foldable clips. A series of 304 stainless-steel clips are provided to secure your EdgeBoard™ onto your foundation.

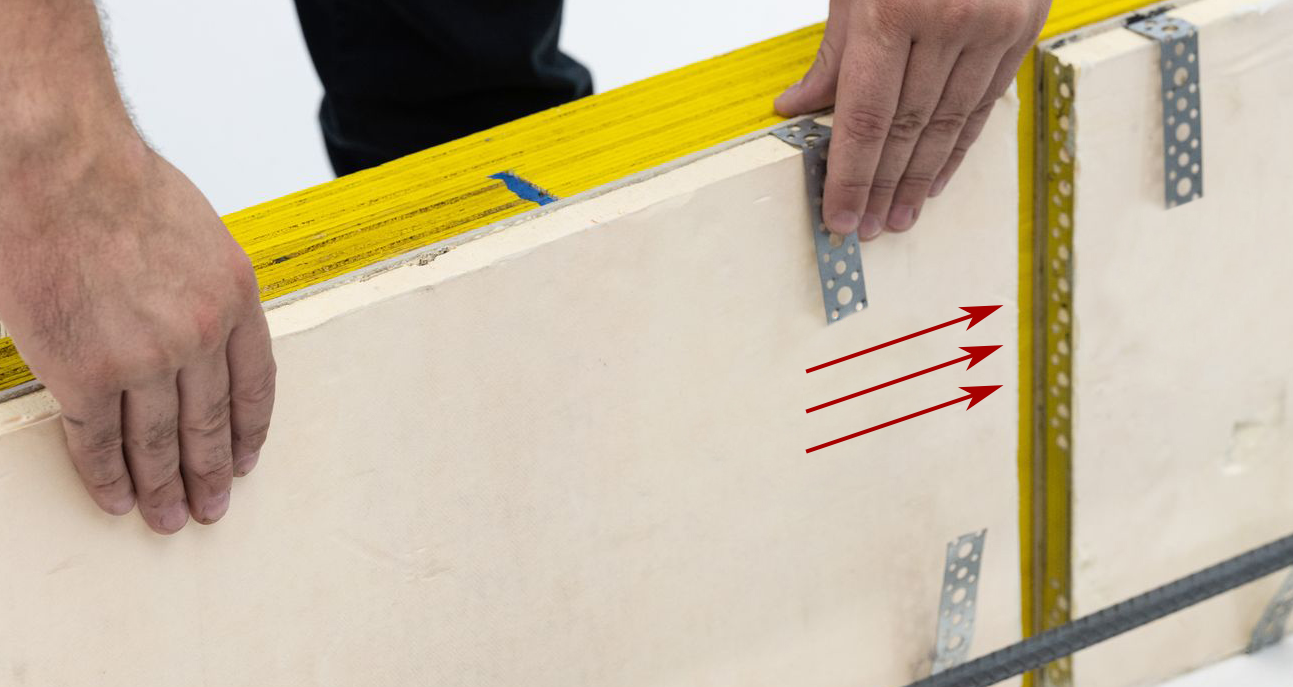

1. Before you start, make sure that the board corner bead is clean and dry. Remove the liner of the double-sided adhesive tape, position and apply some pressure when you connect the boards together.

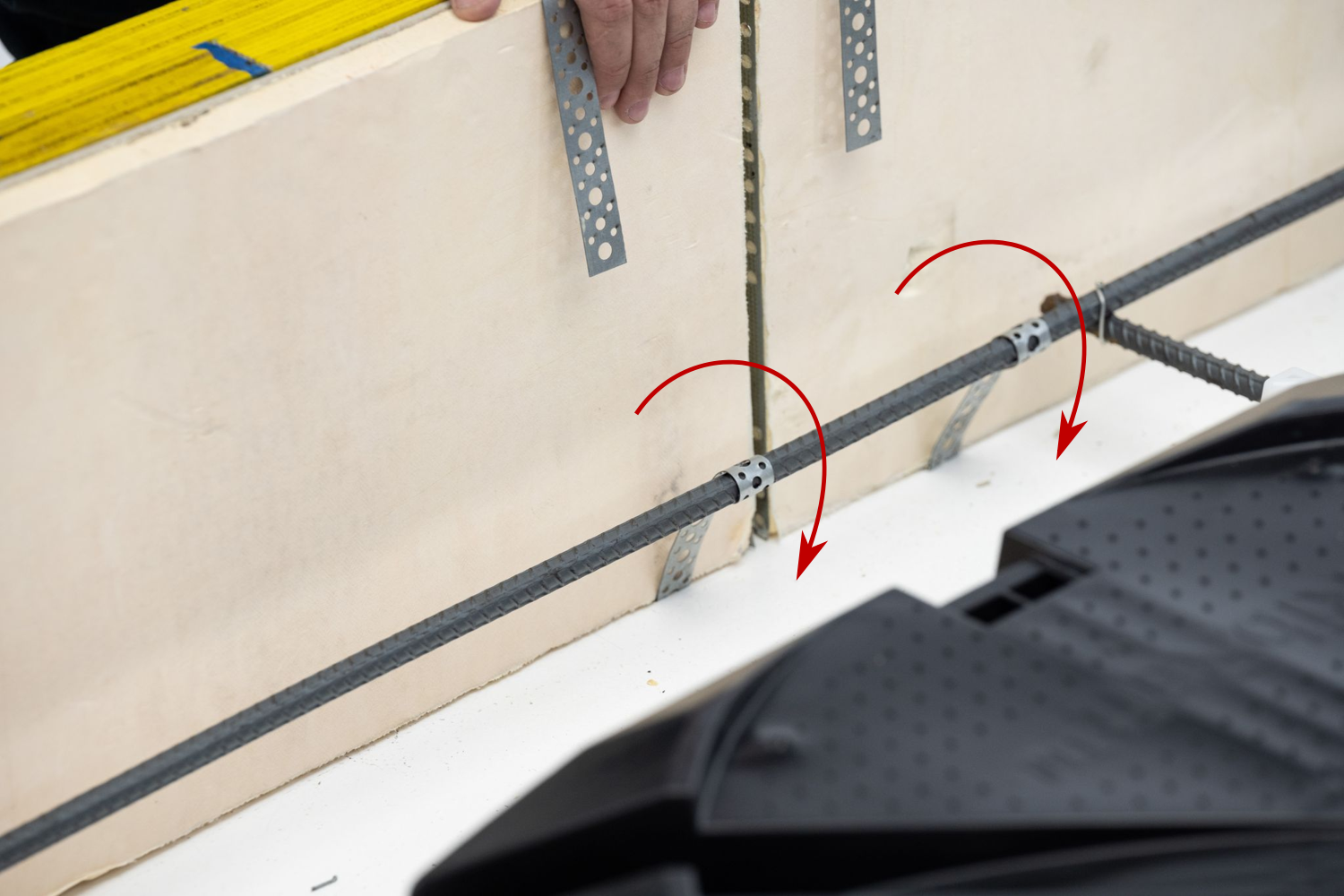

2. Secure the boards by folding the lower clips around the reinforcing bars of the foundation.
3. For superior stability during construction, temporary fix the board to the boxing along the length with self-tapping screws (1 screw every meter).

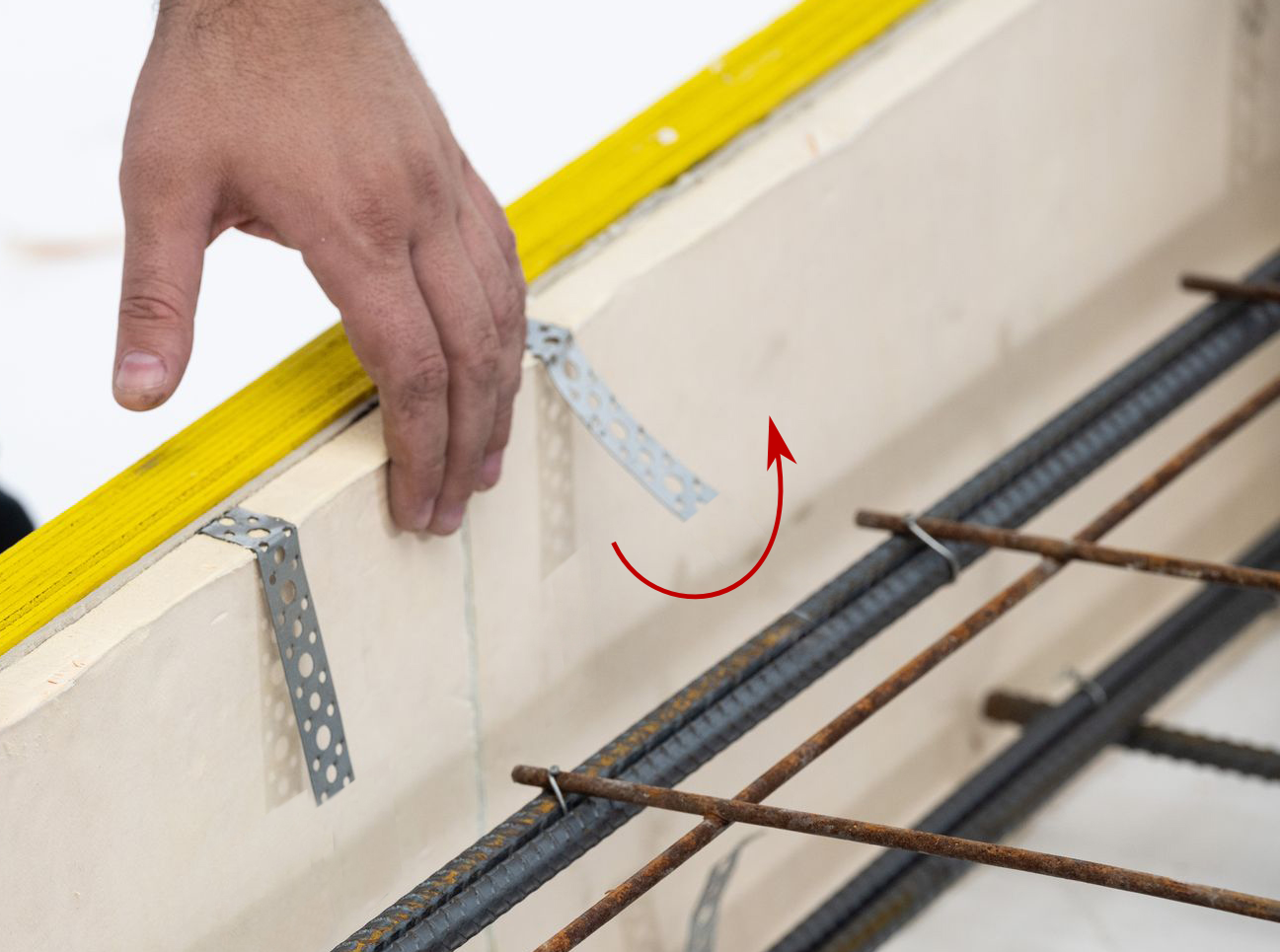

4. Fold up the upper clips. IMPORTANT: Do NOT attach the upper clips to the reinforcing steel of the foundation.

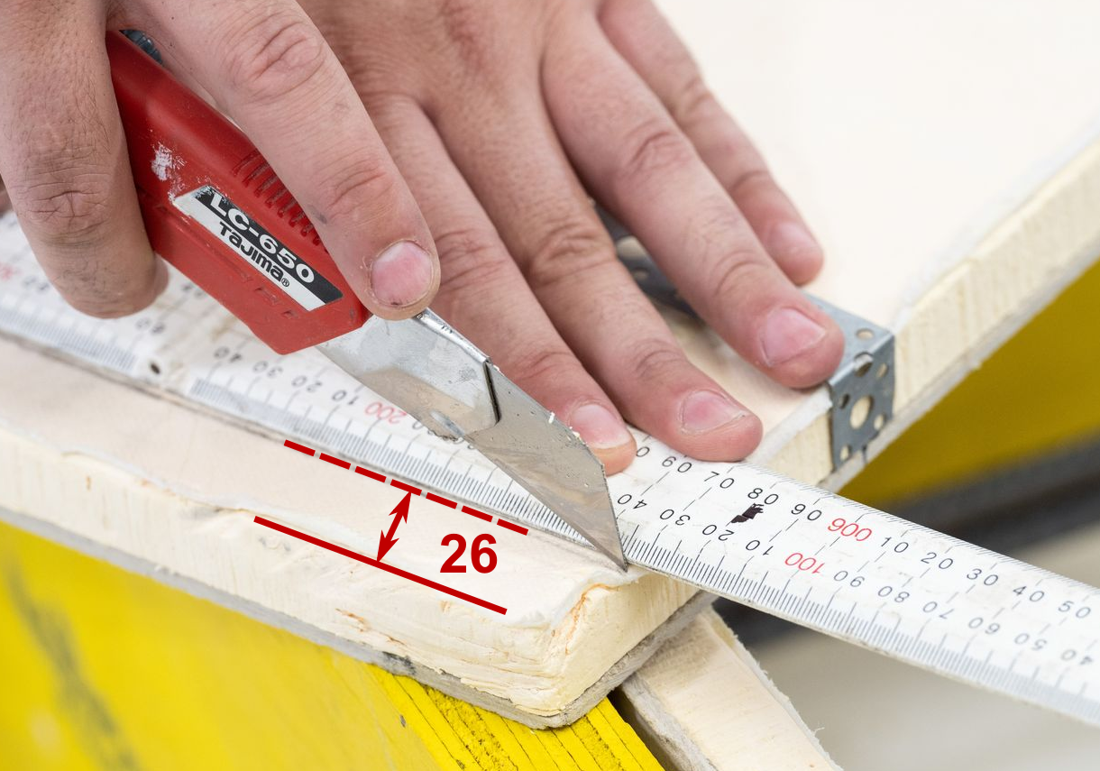

5. At outer corners, cut off a strip of insulation layer. (No cuts are required at inner corners).

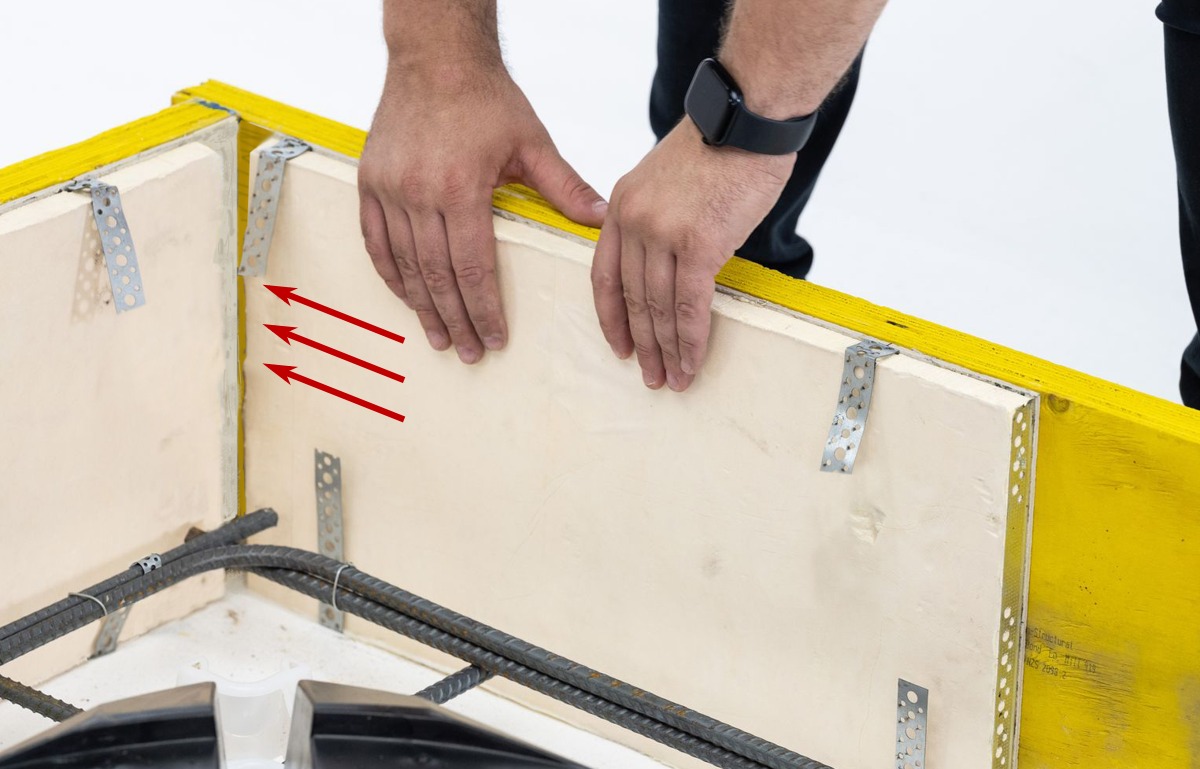

6. Position and connect the boards together. At foundation corners, we recommend fixing each end of the boards to the boxing with self-tapping screws (see point 3).
1. Before you start, make sure that the board corner bead is clean and dry. Remove the liner of the double-sided adhesive tape, position and apply some pressure when you connect the boards together.
2. Secure the boards by folding the lower clips around the reinforcing bars of the foundation.
3. For superior stability during construction, temporary fix the board to the boxing along the length with self-tapping screws (1 screw every meter).
4. Fold up the upper clips. IMPORTANT: Do NOT attach the upper clips to the reinforcing steel of the foundation.
5. At outer corners, cut off a strip of insulation layer. (No cuts are required at inner corners).
6. Position and connect the boards together. At foundation corners, we recommend fixing each end of the boards to the boxing with self-tapping screws (see point 3).
